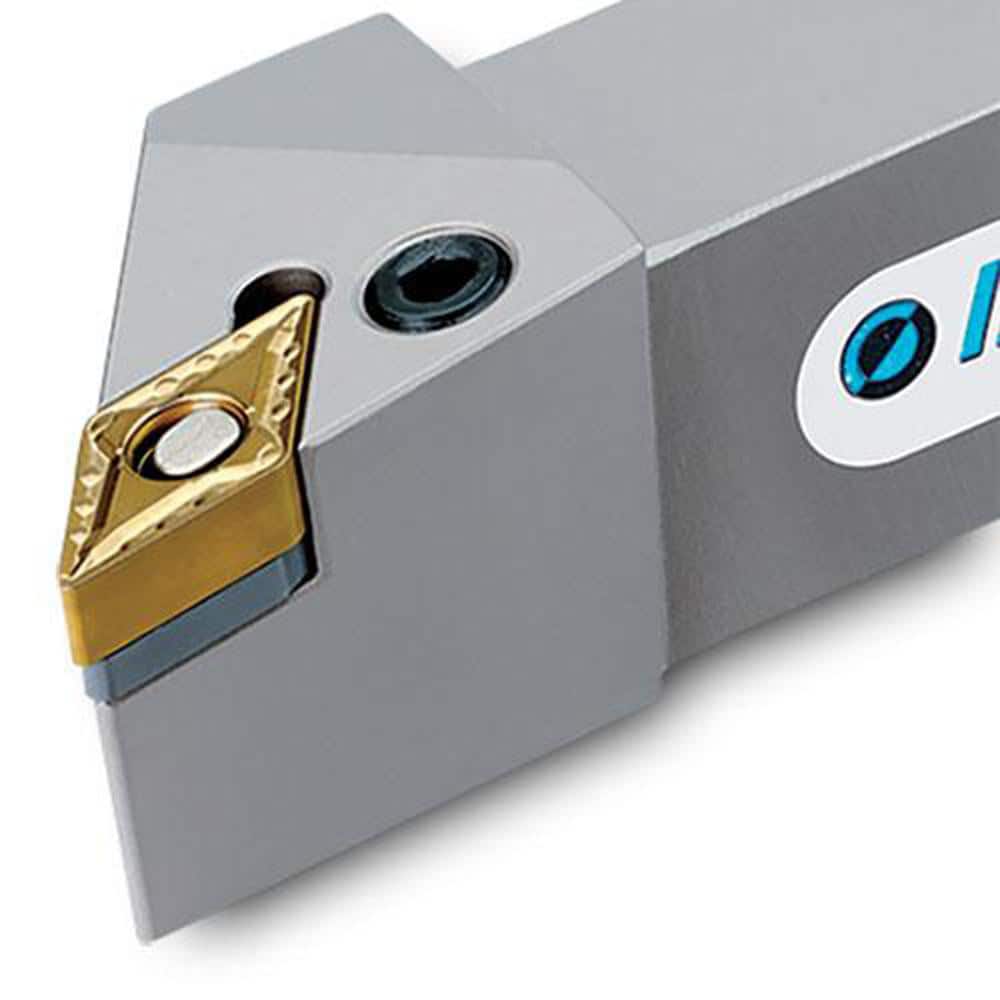

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: DN..3.53.5.; Toolholder Style: HDJNR; Rake: Negative; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Lever; Shank Width (Decimal Inch): 1.0000; Shank
Item #: 38223772
Brand: Ingersoll Cutting Tools
Model #: 6116497
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DN..3.53.5. |
| Toolholder Style | HDJNR |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | HDJNR; L (Gold Rhino) |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3400 |
| Toolholder Material | Steel |
