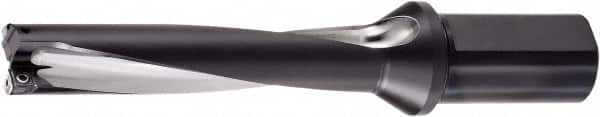

OSG - 156mm Max Drill Depth, 4xD, 39mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 38224069
Brand: OSG
Model #: 7803355
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | P4D |
| Drill Diameter (mm) | 39.00 |
| Drill Diameter (Decimal Inch) | 1.5354 |
| Maximum Drill Depth (mm) | 156.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 256.00 |
| Shank Length (mm) | 70.00 |
| Series | 78033 |
