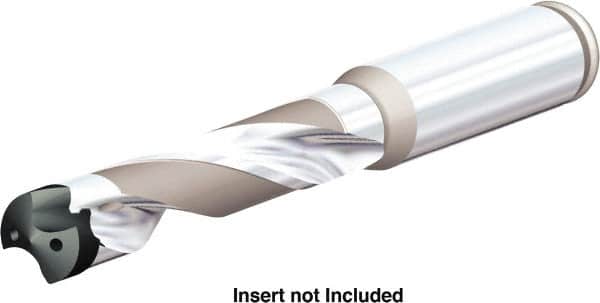

Kennametal - Series KenTIP FS, Head Connection W, 5xD, 20mm Shank Diam, Drill Body - 51mm Drill Body Length to Flange, KTFS Toolholder, 18mm Nose Diam, 168mm OAL, 168mm Drill Body Length, 114.3mm Flute Length, Straight Shank, Through Coolant
Item #: 38276168
Brand: Kennametal
Model #: 6389149
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | W |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 20.00 |
| Drill Body Length to Flange (mm) | 51.00 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 18.00 |
| Overall Length (mm) | 168.00 |
| Gage Length (mm) | 168.00 |
| Flute Length (mm) | 114.30 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 51.00 |
| Through Coolant | Through Coolant |
