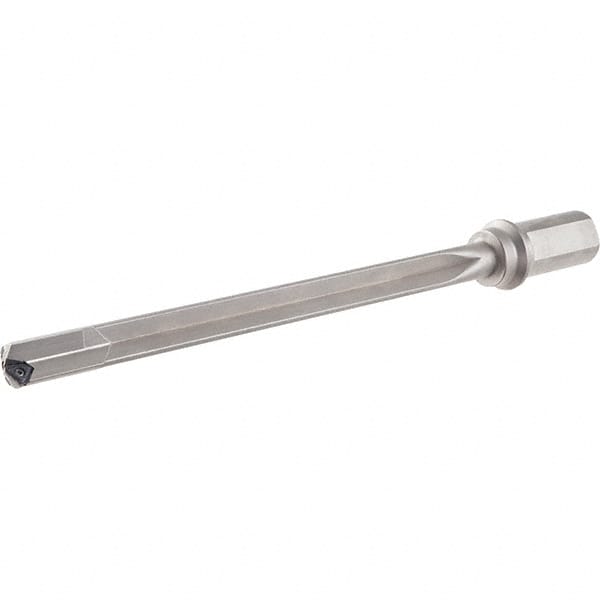

Iscar - 25.73" Max Drill Depth, 25xD, 1" Diam, Indexable Insert Drill - 1 Insert, 1-1/4" Shank Diam, Weldon Flat Shank
Item #: 38286258
Brand: Iscar
Model #: 4819616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (Decimal Inch) | 25.7300 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 25xD |
| Insert Size (Decimal Inch) | 0.1410 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (Decimal Inch) | 30.0000 |
| Insert Compatibility | TOGT 12 |
| Flute Length (Decimal Inch) | 27.6380 |
| Body Length (Decimal Inch) | 27.6400 |
| Shank Length (Decimal Inch) | 2.3620 |
| Series | TriDeep |
