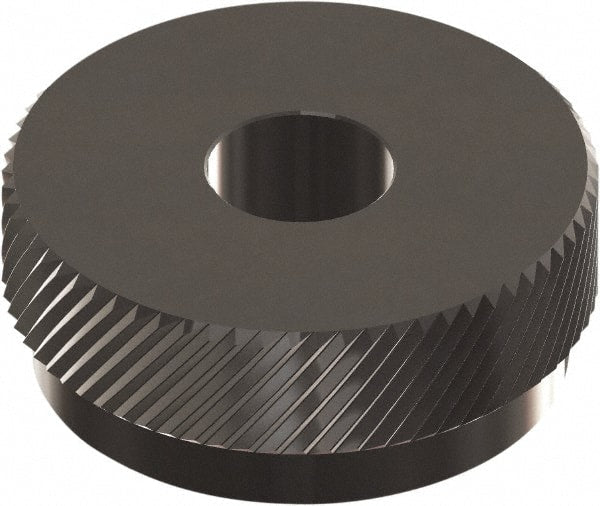

Made in USA - 1/2" Diam, 90° Tooth Angle, 30 TPI, Beveled Face, Form Type High Speed Steel Right-Hand Diagonal Knurl Wheel - 1/4" Face Width, 3/16" Hole, Circular Pitch, 30° Helix, Ferritic Nitrocarburizing Finish, Series EQ
Item #: 38292736
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Right-hand diagonal wheels are used to produce left-hand diagonal patterns. On a two-wheel knurling tool, left and right hand diagonal wheels are used together to create a diamond design.
Form wheels produce textured patterns by forming an impression. This process displaces the material and increases the diameter of the workpiece.
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Knurl Shape | Beveled Face |
| Pattern | Right-Hand Diagonal |
| Form or Cut Type | Form |
| Material | High Speed Steel |
| Knurl Diameter (Decimal Inch) | 0.5000 |
| Knurl Diameter (Inch) | 1/2 |
| Face Width (Decimal Inch) | 0.2500 |
| Face Width (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.1875 |
| Hole Diameter (Inch) | 3/16 |
| Pitch System | Circular |
| Pitch (TPI) | 30 |
| Knurl Series | EQ |
| Included Tooth Angle | 90 |
| Finish/Coating | Ferritic Nitrocarburizing |
| Helix Angle | 30 |
| Overall Width (Inch) | 1/4 |
| Number of Teeth | 40 |
