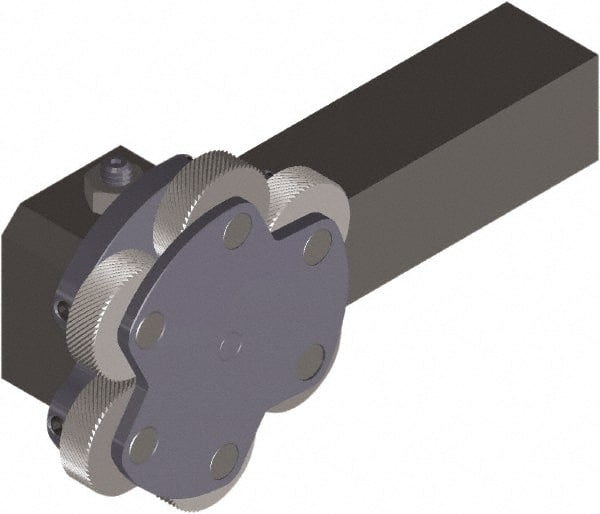

Made in USA - Neutral Cut, Straight & Diamond, 1" Wide x 1" High x 4" Long Square Shank, Revolving-Head Bump Knurlers - 6 Knurls Required (Included), 1" Diam x 5/16" Wide Face, 5/16" Hole Diam, Series OT
Item #: 38293411
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Revolving-head bump knurlers are designed with three pairs of rotating heads. They are self-centering and hold three knurl wheels in coarse, medium and fine grades. They are best used in smaller productions not continuously large runs.
| Product Specifications | |
|---|---|
| Knurler Type | Revolving-Head |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Length (Inch) | 4 |
| Knurl Diameter (Inch) | 1 |
| Knurl Face Width (Inch) | 5/16 |
| Knurl Hole Diameter (Inch) | 5/16 |
| Number of Knurls Required | 6 |
| Knurl Series | OT |
| Modular | No |
| Includes Knurl Wheels | Yes |
| Pattern | Straight; Diamond |
| Knurl Patterns Included | Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 6.2500 |
| Overall Length (Inch) | 6-1/4 |
