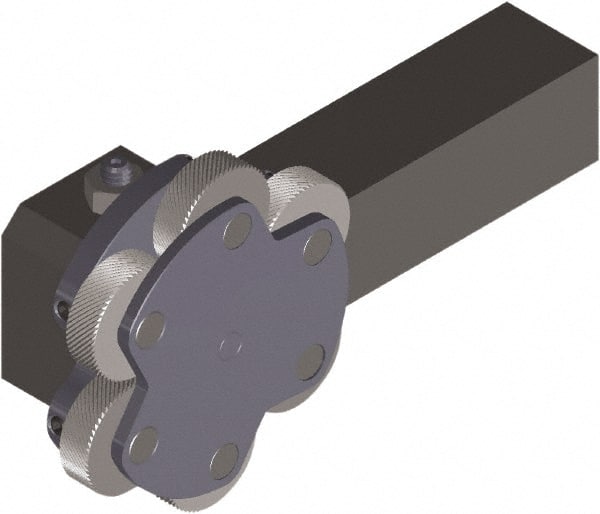

Made in USA - Neutral Cut, Straight & Diamond, 1/2" Wide x 1/2" High x 3" Long Square Shank, Revolving-Head Bump Knurlers - 6 Knurls Required (Included), 1/2" Diam x 3/8" Wide Face, 3/16" Hole Diam, Series C
Item #: 38293437
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Revolving-head bump knurlers are designed with three pairs of rotating heads. They are self-centering and hold three knurl wheels in coarse, medium and fine grades. They are best used in smaller productions not continuously large runs.
| Product Specifications | |
|---|---|
| Knurler Type | Revolving-Head |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Shank Length (Inch) | 3 |
| Knurl Diameter (Inch) | 1/2 |
| Knurl Face Width (Inch) | 3/8 |
| Knurl Hole Diameter (Inch) | 3/16 |
| Number of Knurls Required | 6 |
| Knurl Series | C |
| Modular | No |
| Includes Knurl Wheels | Yes |
| Pattern | Straight; Diamond |
| Knurl Patterns Included | Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (Inch) | 4-1/4 |
