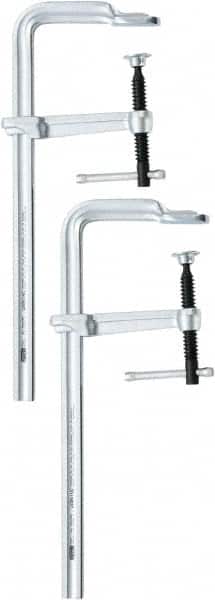

Bessey - 4-3/4" Throat Depth, 6" Max Capacity, Standard Sliding Arm Clamp - 1,330 Lb Clamping Pressure, 5/8" Spindle Diam
Item #: 38325312
Brand: Bessey
Model #: 0699711/0699711
Exact Tooling IR#: 04
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | Standard |
| Maximum Capacity (Inch) | 6 |
| Maximum Capacity (Decimal Inch) | 6.0000 |
| Throat Depth (Inch) | 4-3/4 |
| Throat Depth (Decimal Inch) | 4.7500 |
| Handle Style | T-Handle |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 1330 |
| Series | SQ |
| Spindle Diameter (Decimal Inch) | 0.6250 |
| Spindle Material | High Carbon Steel |
| Rail Size (Inch) | 55/64 x 13/32 |
| Rail Length (Inch) | 4 |
| Pad Material | Steel |
| Includes | Standard Pad; Standard Rail Profile |
