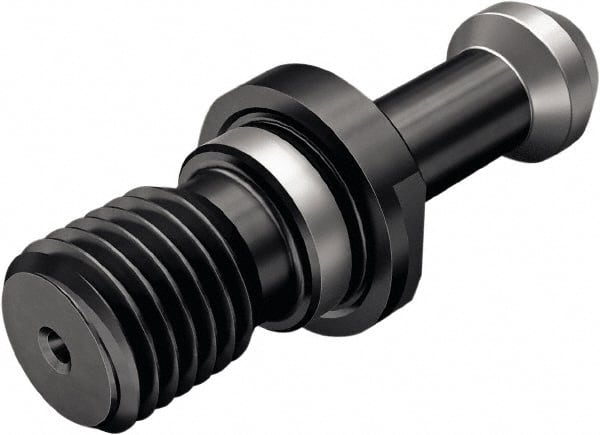

Seco - BT40 Taper, M16x2 Thread, 30° Angle Radius, Standard Retention Knob - 2.362" OAL, 0.591" Knob Diam, 1.378" from Knob to Flange
Item #: 38379889
Brand: Seco
Model #: 03119906
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT40 |
| Thread Size | M16x2 |
| Angle Radius | 30.00 |
| Knob Diameter (Decimal Inch) | 0.5910 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 2.3620 |
| Knob to Flange Length (Decimal Inch) | 1.3780 |
