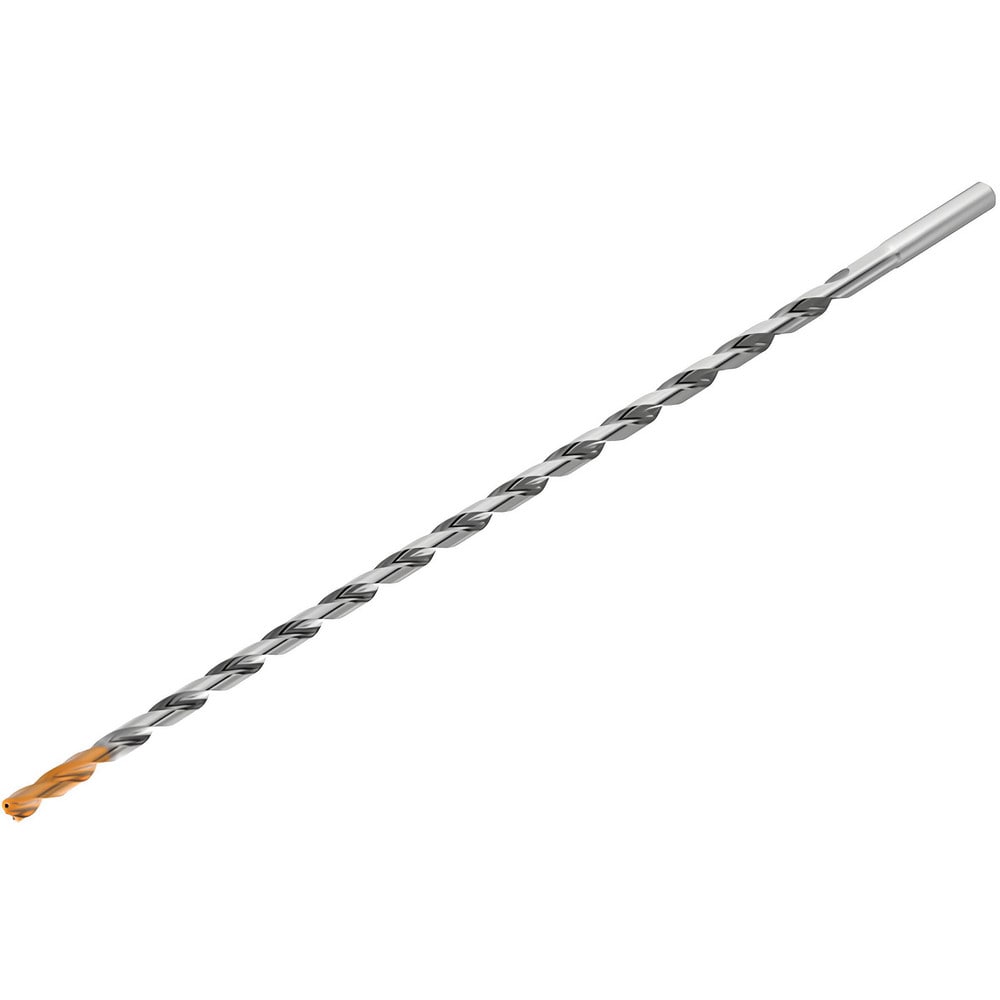

Extra Length Drill Bit: 0.1654", 135 °, Solid Carbide
Item #: 67220186
Brand: Kennametal
Model #: 7080396
Product Specifications
| Drill Bit Size (mm) | 4.20 |
| Overall Length (mm) | 249.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 189.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Drill Point Length (mm) | 1.40 |
| Shank Diameter (mm) | 5.0000 |
| Shank Length (mm) | 34.000 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (mm) | 178.00 |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 4.20 |
| Overall Length (mm) | 249.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 189.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Drill Point Length (mm) | 1.40 |
| Shank Diameter (mm) | 5.0000 |
| Shank Length (mm) | 34.000 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (mm) | 178.00 |
| UNSPSC Code | 23241637 |
| MSC Part # | 67220186 |
| Mfr Part # | 7080396 |
| Country of Origin Country of Origin is subject to change | Germany |
