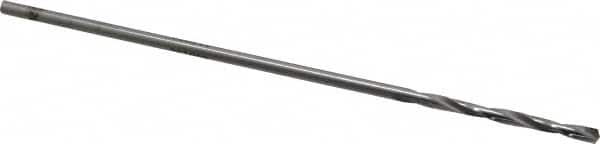

Made in USA - 9/64" Diam, 6" OAL Bright Carbide-Tipped Aircraft Extension Drill Bit
Item #: 76558477
Brand: Made in USA
Model #:
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal) | 0.1406 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Inch) | 6 |
| Flute Length (Inch) | 1-3/4 |
| Flute Length (mm) | 44.45 |
| Specification Designation | NAS |
| Shank Diameter (mm) | 3.57 |
| Shank Diameter (Decimal Inch) | 0.1406 |
| Shank Diameter (Inch) | 9/64 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Shank Type | Straight |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | NAS 907 |
| Series/List | 2610 |
| Through Coolant | No |
