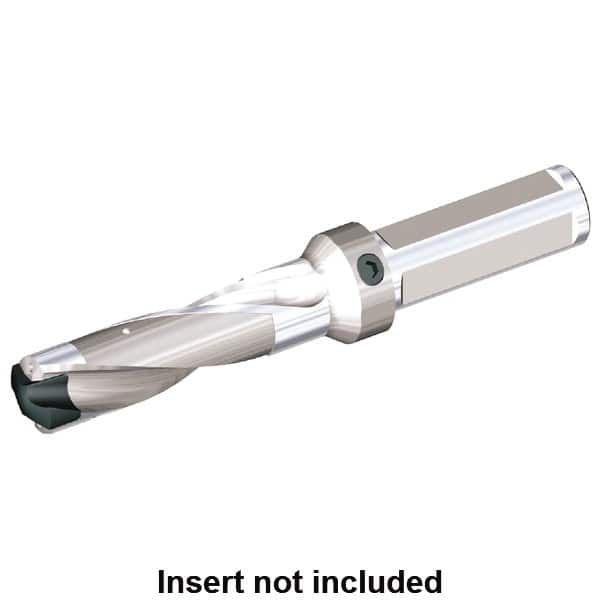

Kennametal - 32.54 to 36mm Diam, 5xD, 162.7mm Max Depth, 1-1/2" Shank Diam, 207.5mm Flute, 317.55mm OAL, Replaceable Tip Drill - KSEM3254HPGM Insert, 9 Seat Size, KSEM Toolholder, Series KSEM
Item #: 38646238
Brand: Kennametal
Model #: 6123754
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 32.54 |
| Minimum Drill Diameter (Decimal Inch) | 1.2811 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4170 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 162.70 |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Style | KSEM3254HPGM |
| Insert Seat Size | 9 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 6.00 |
| Shank Type | Straight Shank |
| Tip Length (mm) | 5.70 |
| Flute Length (mm) | 207.50 |
| Body Length (mm) | 222.30 |
| Overall Length (mm) | 317.55 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 3.7500 |
