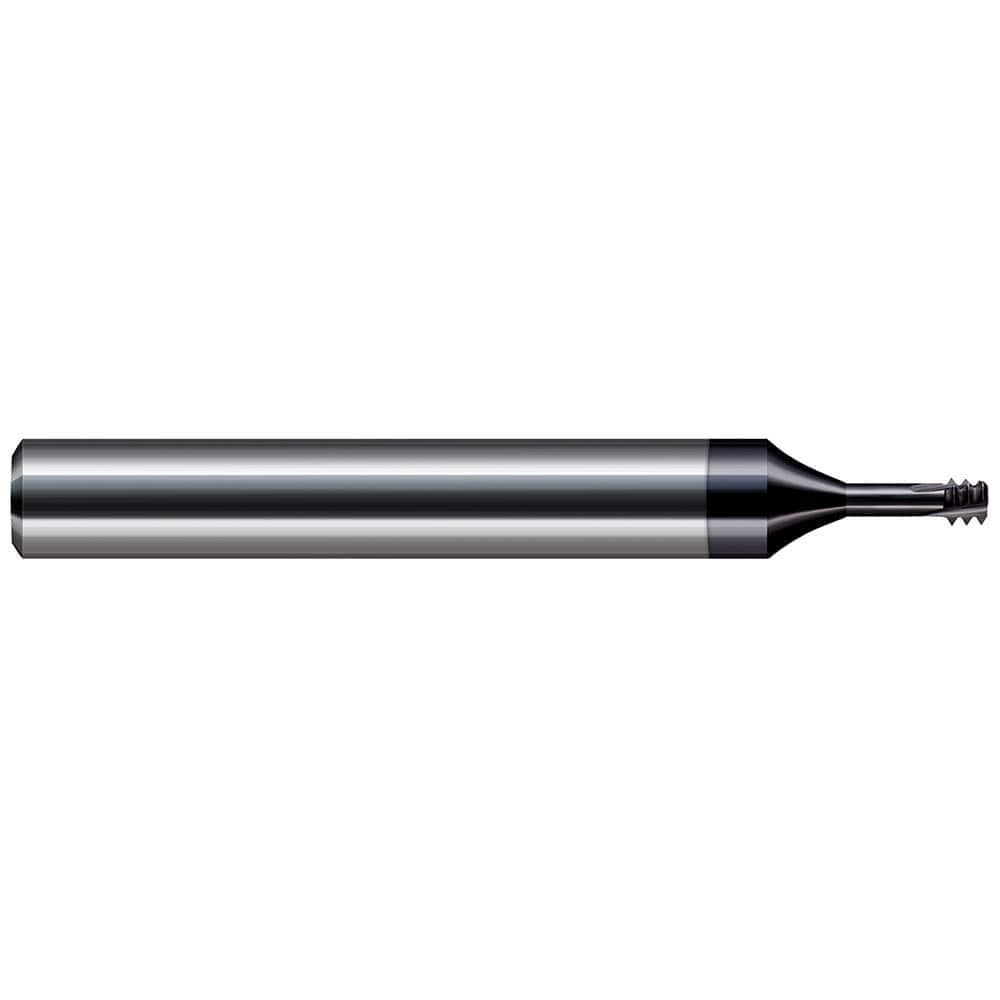

Harvey Tool - 10-24 Internal/External 24 TPI 1/4" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 38690210
Brand: Harvey Tool
Model #: 896434-C6
Product Specifications
| Threads Per Inch | 24 |
| Material | Solid Carbide |
| Thread Size (Inch) | 10-24 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1380 |
| Cutting Diameter (mm) | 3.50 |
| Length of Cut (Decimal Inch) | 0.1250 |
| Length of Cut (Inch) | 1/8 |
| Finish/Coating | AlTiN Nano |
| Through Coolant | No |
| Minimum Nominal Diameter | #10 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1900 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
