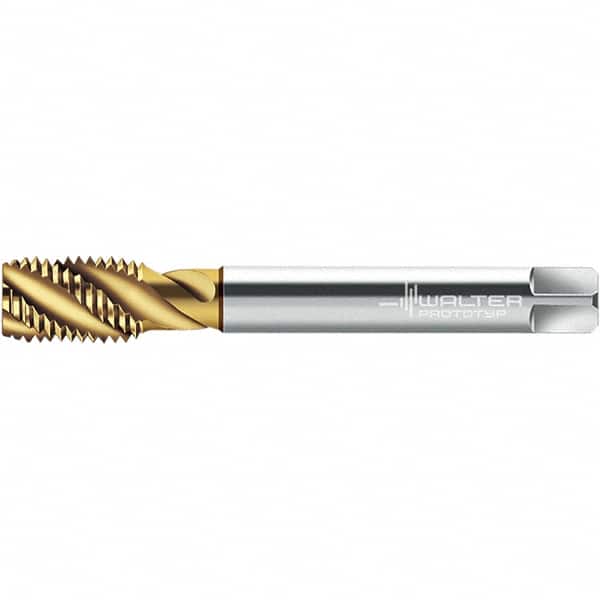

Walter-Prototyp - M8x1.00 DIN 374 3 Flute 6H Semi-Bottoming Spiral Flute Tap - High Speed Steel, TiN Finish, 91.57mm OAL, Right Hand Flute, Right Hand Thread, 6.950, Series TC115-MF-L0
Item #: 38750766
Brand: Walter-Prototyp
Model #: 6958842
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.00 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6H |
| Thread Limit | 6.950 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.6050 |
| Overall Length (mm) | 91.57 |
| Helix Angle | 45 |
| Thread Standard | DIN 374 |
| Material Grade | HSS-E |
| Thread Length (Decimal Inch) | 0.4720 |
| Thread Length (mm) | 12.00 |
| Series/List | TC115-MF-L0 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (mm) | 6.00 |
| Square Length (Inch) | 0.3150 |
| Material Application | K, M, P |
