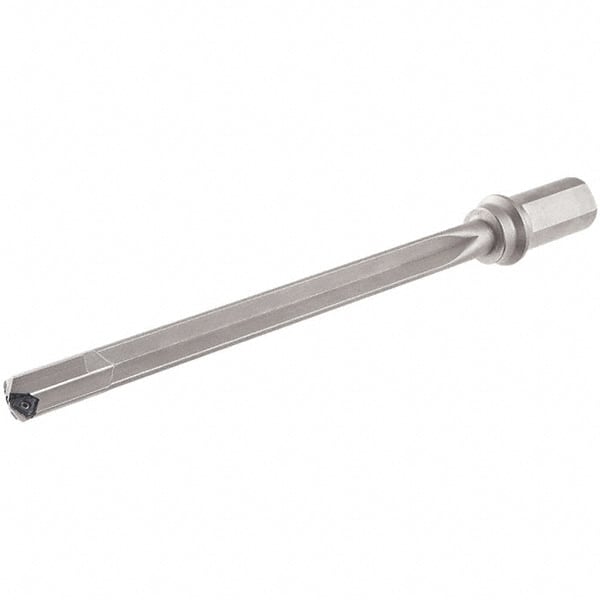

Iscar - 17.81" Max Drill Depth, 25xD, 0.687" Diam, Indexable Insert Drill - 1 Insert, 1" Shank Diam, Weldon Flat Shank
Item #: 38754958
Brand: Iscar
Model #: 4846644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (Decimal Inch) | 0.6870 |
| Maximum Drill Depth (Decimal Inch) | 17.8100 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 25xD |
| Insert Size (Decimal Inch) | 0.0860 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (Decimal Inch) | 21.5000 |
| Insert Compatibility | TOGT 08 |
| Flute Length (Decimal Inch) | 19.2910 |
| Body Length (Decimal Inch) | 19.2900 |
| Shank Length (Decimal Inch) | 2.2100 |
| Series | TriDeep |
