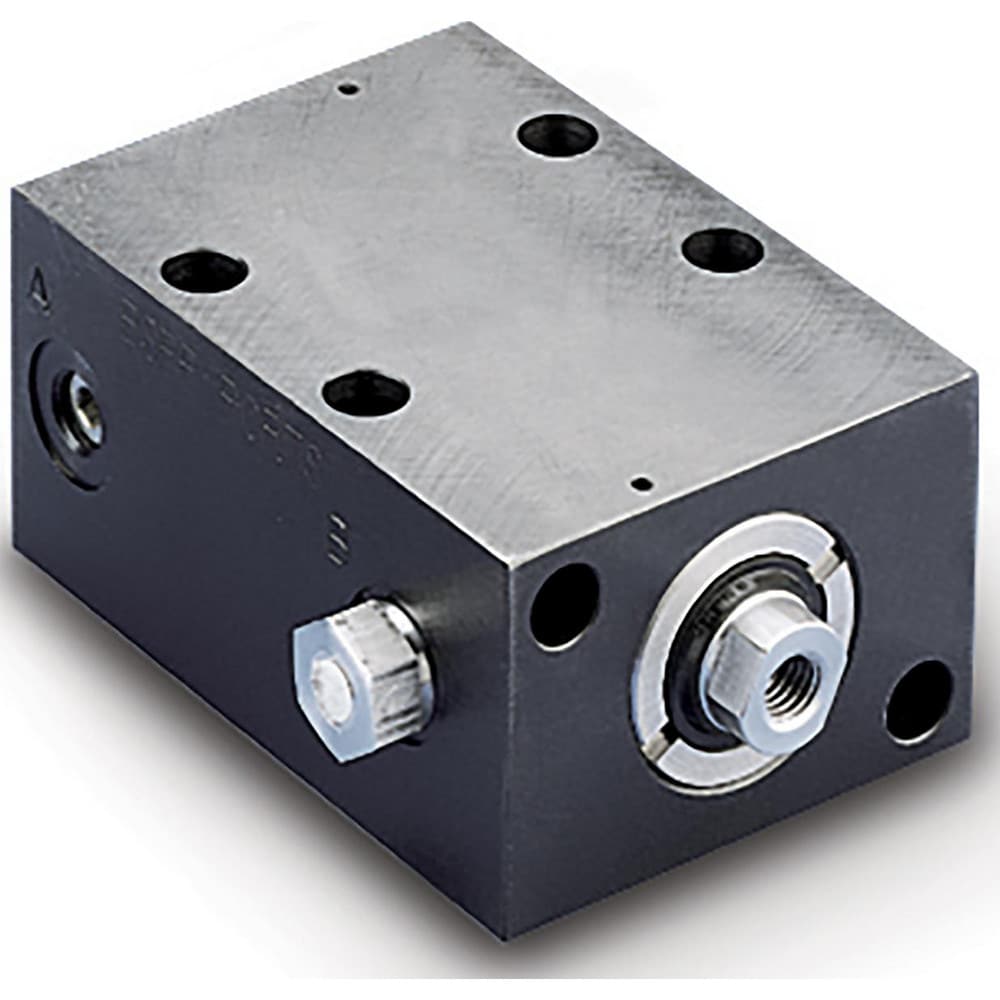

Compact Hydraulic Cylinders; Actuation: Single Acting; Rod Diameter (Decimal Inch): 0.6300; Body Material: Steel; Stroke Length (Decimal Inch): 0.9800; Maximum Working Pressure (Psi
Item #: 29110020
Brand: Enerpac
Model #: CSB18252
Product Specifications
| Actuation | Single Acting |
| Rod Diameter (Decimal Inch) | 0.6300 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 0.9800 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | 1/8 in |
| Mount Type | Manifold |
| Bore Size (Decimal Inch) | 0.98 |
| Retracted Length (Decimal Inch) | 3.94 |
| Extended Length (Inch) | 4.9200 |
| Load Capacity (Lb.) | 3800 |
| UNSPSC Code | 27121602 |
