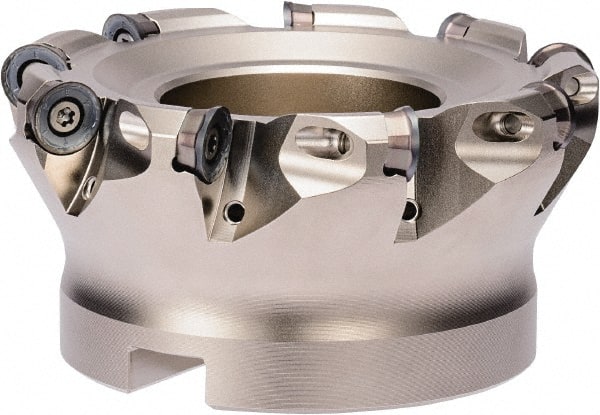

Kyocera - 2" Cut Diam, 0.197" Max Depth, 0.313" Arbor Hole, 6 Inserts, RPGT 10, RPMT 10 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 17,500 Max RPM, 1.575" High, Through Coolant, Series RAD-6
Item #: 39124953
Brand: Kyocera
Model #: 8608621
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Arbor Hole Diameter (Decimal Inch) | 0.3130 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | RAD-6 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RPGT 10; RPMT 10 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 17500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Insert Inscribed Circle (mm) | 10.01 |
| Insert Inscribed Circle (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.6690 |
| Complete Insert Compatibility | RPGT 10T3M0ER-GM; RPGT 10T3M0ER-SM; RPMT 10T3M0EN-GH; RPMT 10T3M0ER-GM |
| ISO Number | MRX2000R-10-6T |
