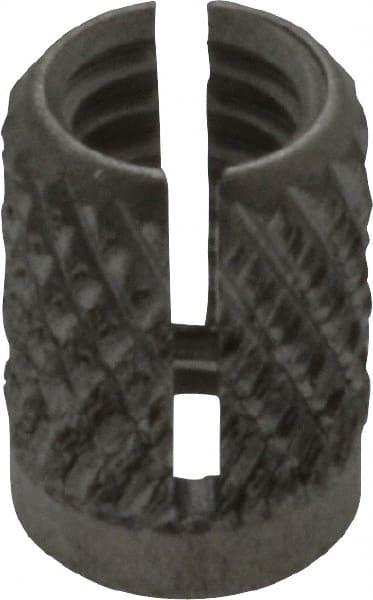

E-Z LOK - #8-32 UNC Stainless Steel Flanged Press Fit Threaded Insert for Plastic - 5/16" OAL, 0.23" Insert Diam, 7/32" Hole Diam, 7/32" Drill
Item #: 39219787
Brand: E-Z LOK
Model #: 260-008-CR
Exact Tooling IR#: 04
Features and Benefits
Flanged press fit threaded inserts have a flange on one end, which prevents direct contact between the workpiece material and the screw or bolt used in the insert.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Flanged |
| For Material Type | Plastic |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Thread Size | #8-32 |
| Overall Length (Decimal Inch) | 0.3130 |
| Insert Diameter (Decimal Inch) | 0.2300 |
| Hole Diameter (Decimal Inch) | 0.2190 |
| Drill Size (Inch) | 7/32 |
| Thread Standard | UNC |
