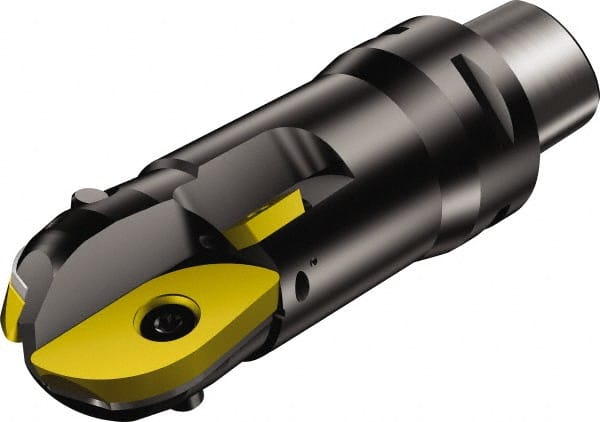

Sandvik Coromant - 1-1/4" Cut Diam, 1.114" Max Depth of Cut, 32mm Shank Diam, 3.526" OAL, Indexable Ball Nose End Mill - 2.7559" Head Length, C3 Modular Connection, RA216.. Cx Toolholder, RA216-32 06 Insert
Item #: 39244694
Brand: Sandvik Coromant
Model #: 5739358
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.1140 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | C3 |
| Shank Diameter (mm) | 32.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-32 06 |
| Toolholder Style | RA216.. Cx |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 3.5026 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.7559 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Maximum RPM | 18500 |
| Projection (Decimal Inch) | 2.7545 |
