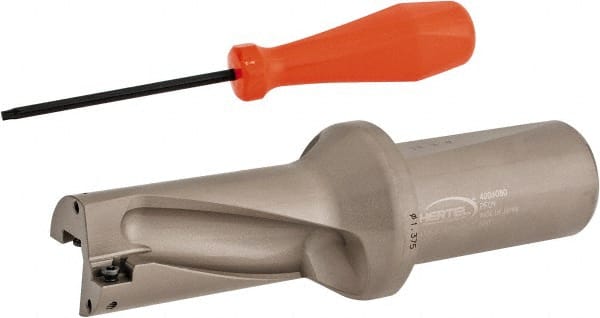

Hertel - 2-3/4" Max Drill Depth, 2xD, 1-3/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39269733
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 34.92 |
| Drill Diameter (Inch) | 1-3/8 |
| Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Inch) | 2-3/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4160 |
| Overall Length/Projection (mm) | 97.84 |
| Overall Length/Projection (Decimal Inch) | 3.8520 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT094508-GP |
| Flute Length (mm) | 73.84 |
| Flute Length (Decimal Inch) | 2.9070 |
| Body Length (Decimal Inch) | 6.8520 |
| Body Length (mm) | 174.04 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (mm) | 54.00 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Radius (Decimal Inch) | 0.0315 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
