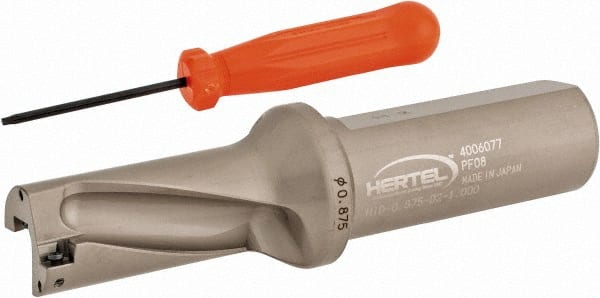

Hertel - 1-3/4" Max Drill Depth, 2xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39269741
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 1-3/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9010 |
| Overall Length/Projection (mm) | 62.46 |
| Overall Length/Projection (Decimal Inch) | 2.4590 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT063306-GP |
| Flute Length (mm) | 47.45 |
| Flute Length (Decimal Inch) | 1.8680 |
| Body Length (Decimal Inch) | 4.9590 |
| Body Length (mm) | 125.96 |
| Shank Length (mm) | 63.50 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (mm) | 32.99 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Radius (Decimal Inch) | 0.0236 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
