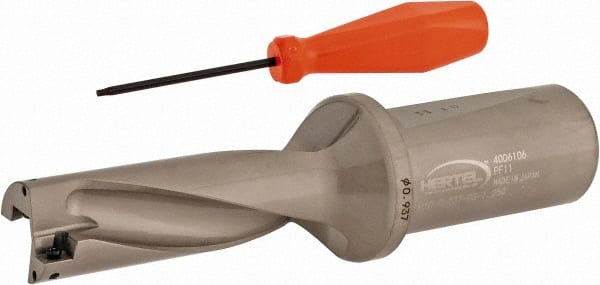

Hertel - 2-13/16" Max Drill Depth, 3xD, 15/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39269857
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 23.81 |
| Drill Diameter (Inch) | 15/16 |
| Drill Diameter (Decimal Inch) | 0.9375 |
| Maximum Drill Depth (Inch) | 2-13/16 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9660 |
| Overall Length/Projection (mm) | 92.43 |
| Overall Length/Projection (Decimal Inch) | 3.6390 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT074006-GP |
| Flute Length (mm) | 74.45 |
| Flute Length (Decimal Inch) | 2.9310 |
| Body Length (Decimal Inch) | 6.1390 |
| Body Length (mm) | 155.93 |
| Shank Length (mm) | 63.50 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (mm) | 41.00 |
| Collar Diameter (Decimal Inch) | 1.6140 |
| Radius (Decimal Inch) | 0.0236 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
