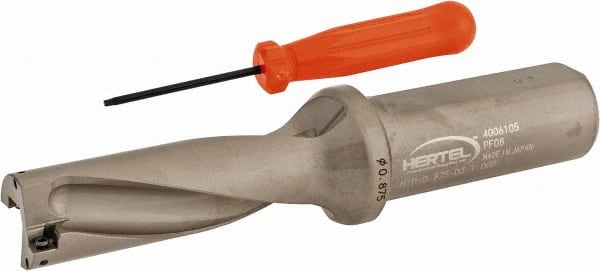

Hertel - 2-5/8" Max Drill Depth, 3xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39269881
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 2-5/8 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9010 |
| Overall Length/Projection (mm) | 84.68 |
| Overall Length/Projection (Decimal Inch) | 3.3340 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT063306-GP |
| Flute Length (mm) | 69.67 |
| Flute Length (Decimal Inch) | 2.7430 |
| Body Length (Decimal Inch) | 5.8340 |
| Body Length (mm) | 148.18 |
| Shank Length (mm) | 63.50 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (mm) | 32.99 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Radius (Decimal Inch) | 0.0236 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
