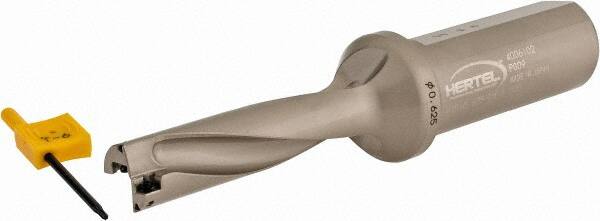

Hertel - 2-1/2" Max Drill Depth, 4xD, 5/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39269915
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 15.88 |
| Drill Diameter (Inch) | 5/8 |
| Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth (mm) | 63.50 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6440 |
| Overall Length/Projection (mm) | 81.51 |
| Overall Length/Projection (Decimal Inch) | 3.2090 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT052804-GP |
| Flute Length (mm) | 66.50 |
| Flute Length (Decimal Inch) | 2.6180 |
| Body Length (Decimal Inch) | 5.7090 |
| Body Length (mm) | 145.01 |
| Shank Length (mm) | 63.50 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (mm) | 32.00 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Radius (Decimal Inch) | 0.0157 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
