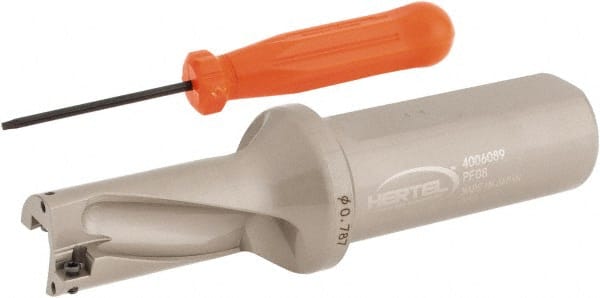

Hertel - 1.574" Max Drill Depth, 2xD, 0.787" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39269980
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 19.99 |
| Drill Diameter (Inch) | 0.7870 |
| Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Depth (Decimal Inch) | 1.5740 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8110 |
| Overall Length/Projection (mm) | 57.99 |
| Overall Length/Projection (Decimal Inch) | 2.2830 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT063306-GP |
| Flute Length (mm) | 42.98 |
| Flute Length (Decimal Inch) | 1.6920 |
| Body Length (Decimal Inch) | 4.7830 |
| Body Length (mm) | 121.49 |
| Shank Length (mm) | 63.50 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (mm) | 32.99 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Radius (Decimal Inch) | 0.0236 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
