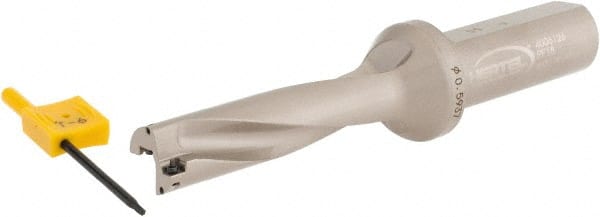

Hertel - 2-3/8" Max Drill Depth, 4xD, 19/32" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 39270186
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 15.08 |
| Drill Diameter (Inch) | 0.5937 |
| Drill Diameter (Decimal Inch) | 0.5937 |
| Maximum Drill Depth (mm) | 60.32 |
| Maximum Drill Depth (Decimal Inch) | 2.3748 |
| Maximum Drill Depth (Inch) | 2-3/8 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6120 |
| Overall Length/Projection (mm) | 78.36 |
| Overall Length/Projection (Decimal Inch) | 3.0850 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT042004-GP |
| Flute Length (mm) | 63.35 |
| Flute Length (Decimal Inch) | 2.4940 |
| Body Length (Decimal Inch) | 5.0850 |
| Body Length (mm) | 129.16 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Collar Diameter (mm) | 27.99 |
| Collar Diameter (Decimal Inch) | 1.1020 |
| Radius (Decimal Inch) | 0.0157 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
