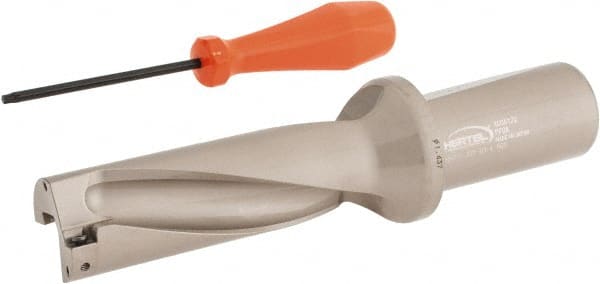

Hertel - 4-5/16" Max Drill Depth, 3xD, 1-7/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39270228
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 36.51 |
| Drill Diameter (Inch) | 1-7/16 |
| Drill Diameter (Decimal Inch) | 1.4375 |
| Maximum Drill Depth (Decimal Inch) | 4.3125 |
| Maximum Drill Depth (Inch) | 4-5/16 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4810 |
| Overall Length/Projection (mm) | 137.54 |
| Overall Length/Projection (Decimal Inch) | 5.4150 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT094508-GP |
| Flute Length (mm) | 113.54 |
| Flute Length (Decimal Inch) | 4.4700 |
| Body Length (Decimal Inch) | 8.4150 |
| Body Length (mm) | 213.74 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (mm) | 54.00 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Radius (Decimal Inch) | 0.0315 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
