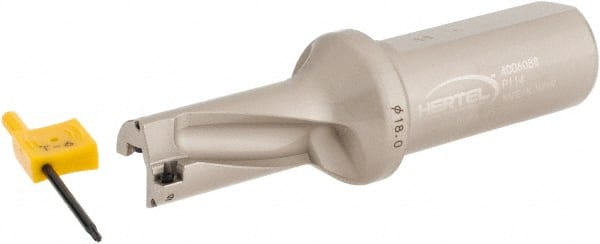

Hertel - 1-5/12" Max Drill Depth, 2xD, 0.7087" Diam, Indexable Insert Drill - 2 Inserts, 63/64" Shank Diam, Straight Shank
Item #: 39270335
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Inch) | 0.7087 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 36.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4173 |
| Maximum Drill Depth (Inch) | 1.417 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7300 |
| Overall Length/Projection (mm) | 54.00 |
| Overall Length/Projection (Decimal Inch) | 2.1260 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT052804-GP |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5354 |
| Body Length (Decimal Inch) | 4.3307 |
| Body Length (mm) | 110.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 32.00 |
| Collar Diameter (Decimal Inch) | 1.2598 |
| Radius (Decimal Inch) | 0.0157 |
