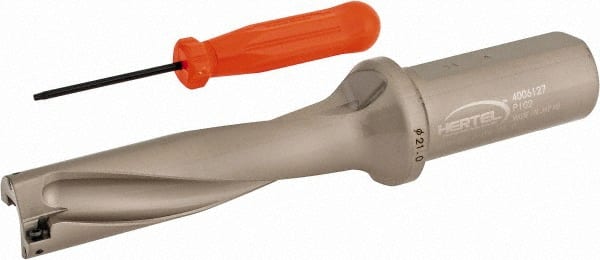

Hertel - 3.3071" Max Drill Depth, 4xD, 0.8268" Diam, Indexable Insert Drill - 2 Inserts, 63/64" Shank Diam, Straight Shank
Item #: 39270442
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Inch) | 0.8268 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3071 |
| Maximum Drill Depth (Inch) | 3.307 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8520 |
| Overall Length/Projection (mm) | 102.00 |
| Overall Length/Projection (Decimal Inch) | 4.0157 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT063306-GP |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Body Length (Decimal Inch) | 6.2205 |
| Body Length (mm) | 158.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 33.00 |
| Collar Diameter (Decimal Inch) | 1.2992 |
| Radius (Decimal Inch) | 0.0236 |
