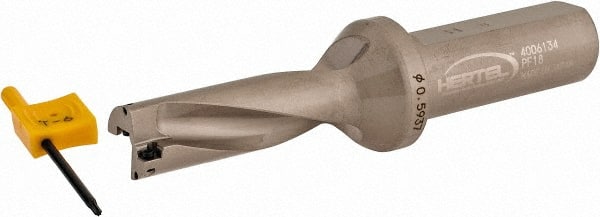

Hertel - 1-25/32" Max Drill Depth, 3xD, 19/32" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 39270467
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 15.08 |
| Drill Diameter (Inch) | 0.5937 |
| Drill Diameter (Decimal Inch) | 0.5937 |
| Maximum Drill Depth (Inch) | 1-25/32 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6120 |
| Overall Length/Projection (mm) | 63.27 |
| Overall Length/Projection (Decimal Inch) | 2.4910 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT042004-GP |
| Flute Length (mm) | 48.26 |
| Flute Length (Decimal Inch) | 1.9000 |
| Body Length (Decimal Inch) | 4.4910 |
| Body Length (mm) | 114.07 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
| Collar Diameter (mm) | 27.99 |
| Collar Diameter (Decimal Inch) | 1.1020 |
| Radius (Decimal Inch) | 0.0157 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
