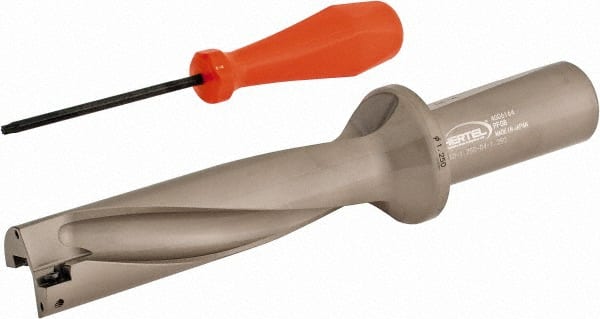

Hertel - 5" Max Drill Depth, 4xD, 1-1/4" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39270525
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | HID |
| Drill Diameter (mm) | 31.75 |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (mm) | 127.00 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Maximum Drill Depth (Inch) | 5 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2880 |
| Overall Length/Projection (mm) | 151.99 |
| Overall Length/Projection (Decimal Inch) | 5.9840 |
| Insert Compatibility (Outside or Peripheral) | None |
| Insert Compatibility | HPMT094508-GP |
| Flute Length (mm) | 130.99 |
| Flute Length (Decimal Inch) | 5.1570 |
| Body Length (Decimal Inch) | 8.9840 |
| Body Length (mm) | 228.19 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (mm) | 49.99 |
| Collar Diameter (Decimal Inch) | 1.9680 |
| Radius (Decimal Inch) | 0.0315 |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
