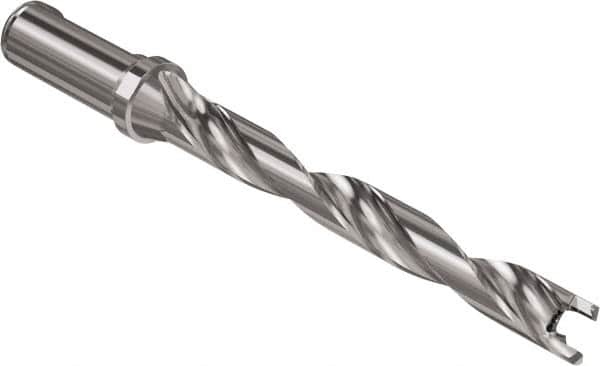

Seco - Crownloc Plus Series, 14 Head Connection, 8xD, 5/8" Shank Diam, Drill Body - 143.5mm Body to Flange Length, SD408 Toolholder, 14mm Nose Diam, 129.5mm Flute Length
Item #: 39309026
Brand: Seco
Model #: 40314
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Head Connection Size | 14 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 5/8 |
| Drill Body Length to Flange (mm) | 143.50 |
| Toolholder Style | SD408 |
| Nose Diameter (mm) | 14.00 |
| Overall Length (mm) | 191.50 |
| Flute Length (mm) | 129.50 |
| Shank Type | Weldon |
| Shank Length (mm) | 48.00 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
