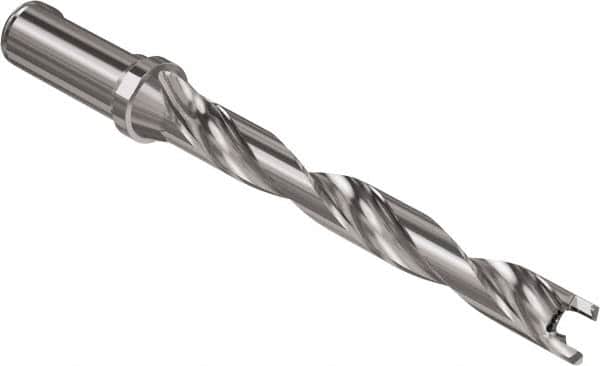

Seco - Crownloc Plus Series, 12 Head Connection, 8xD, 5/8" Shank Diam, Drill Body - 120.2mm Body to Flange Length, SD408 Toolholder, 12mm Nose Diam, 108.2mm Flute Length
Item #: 39309141
Brand: Seco
Model #: 40310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Head Connection Size | 12 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Taper Size | None |
| Shank Diameter (Inch) | 5/8 |
| Drill Body Length to Flange (mm) | 120.20 |
| Toolholder Style | SD408 |
| Nose Diameter (mm) | 12.00 |
| Overall Length (mm) | 168.20 |
| Flute Length (mm) | 108.20 |
| Shank Type | Weldon |
| Shank Length (mm) | 48.00 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
