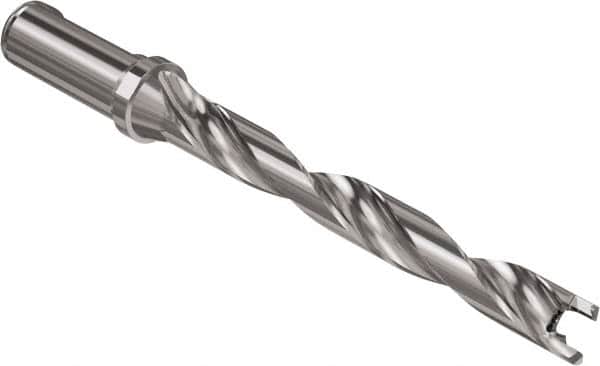

Seco - Crownloc Plus Series, 19 Head Connection, 8xD, 3/4" Shank Diam, Drill Body - 192mm Body to Flange Length, SD408 Toolholder, 19mm Nose Diam, 173mm Flute Length
Item #: 39309273
Brand: Seco
Model #: 40321
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Head Connection Size | 19 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 3/4 |
| Drill Body Length to Flange (mm) | 192.00 |
| Toolholder Style | SD408 |
| Nose Diameter (mm) | 19.00 |
| Overall Length (mm) | 242.00 |
| Flute Length (mm) | 173.00 |
| Shank Type | Weldon |
| Shank Length (mm) | 50.00 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
