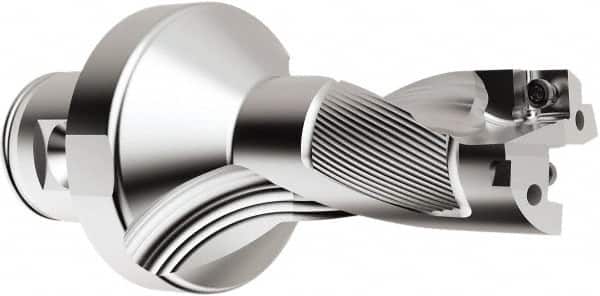

Seco - 64mm Max Drill Depth, 2xD, 32mm Diam, Indexable Insert Drill - 2 Inserts, 28mm Shank Diam, ABS 50 Modular Connection Shank
Item #: 39324884
Brand: Seco
Model #: 03080804
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD522 |
| Drill Diameter (mm) | 32.00 |
| Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (mm) | 64.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 32.70 |
| Overall Length/Projection (mm) | 125.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX11T3.. |
| Flute Length (mm) | 69.00 |
| Body Length (mm) | 94.00 |
| Shank Length (mm) | 31.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
