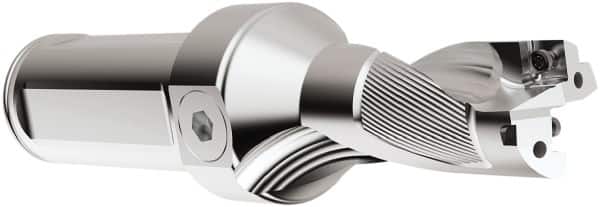

Seco - 60.2mm Max Drill Depth, 2xD, 30.15mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39325485
Brand: Seco
Model #: 03080733
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD522 |
| Drill Diameter (mm) | 30.15 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (mm) | 60.20 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 31.15 |
| Overall Length/Projection (mm) | 165.05 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 65.20 |
| Body Length (mm) | 95.20 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (mm) | 42.00 |
| Series | PerfoMAX |
