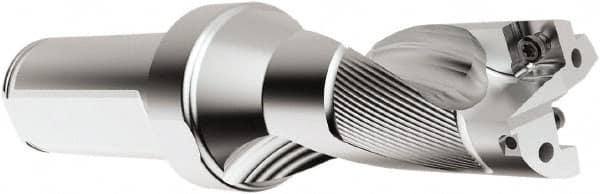

Seco - 32mm Max Drill Depth, 2xD, 16mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 39325576
Brand: Seco
Model #: 03080749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD522 |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Depth (mm) | 32.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 16.82 |
| Overall Length/Projection (mm) | 112.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0502.. |
| Flute Length (mm) | 37.00 |
| Body Length (mm) | 62.00 |
| Shank Length (mm) | 50.00 |
| Collar Diameter (mm) | 30.00 |
| Series | PerfoMAX |
