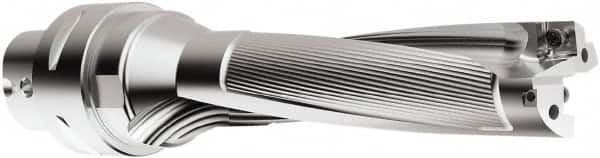

Seco - 152mm Max Drill Depth, 4xD, 38mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 39330527
Brand: Seco
Model #: 03080259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 38.00 |
| Drill Diameter (Decimal Inch) | 1.4961 |
| Maximum Drill Depth (mm) | 152.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 38.92 |
| Insert Compatibility (Outside or Peripheral) | SCGX 11T308 |
| Insert Compatibility | SPGX12T3.. |
| Flute Length (mm) | 157.00 |
| Body Length (mm) | 198.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
