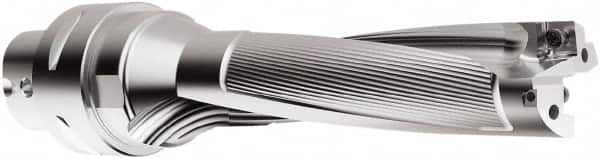

Seco - 148mm Max Drill Depth, 4xD, 37mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 39330550
Brand: Seco
Model #: 03080404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 37.00 |
| Drill Diameter (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 148.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 37.92 |
| Insert Compatibility (Outside or Peripheral) | SCGX 11T308 |
| Insert Compatibility | SPGX11T3.. |
| Flute Length (mm) | 153.00 |
| Body Length (mm) | 196.00 |
| Collar Diameter (mm) | 63.00 |
| Series | PerfoMAX |
