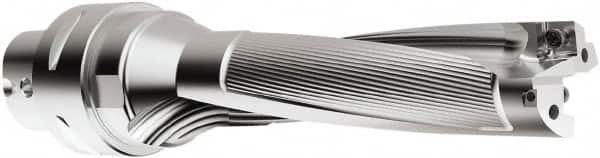

Seco - 5" Max Drill Depth, 4xD, 1-1/4" Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 39330840
Brand: Seco
Model #: 03080421
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Inch) | 5 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 32.31 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 132.00 |
| Body Length (mm) | 175.00 |
| Collar Diameter (mm) | 63.00 |
| Series | PerfoMAX |
