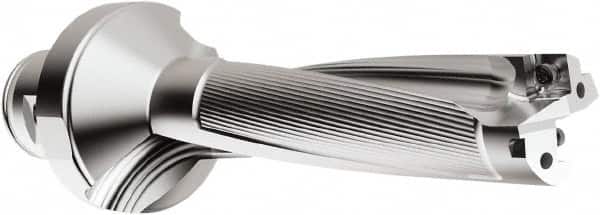

Seco - 5" Max Drill Depth, 4xD, 1-1/4" Diam, Indexable Insert Drill - 2 Inserts, 28mm Shank Diam, Straight Shank
Item #: 39330865
Brand: Seco
Model #: 03080359
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Inch) | 5 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 28.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 32.31 |
| Overall Length/Projection (mm) | 188.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX11T3.. |
| Flute Length (mm) | 132.00 |
| Body Length (mm) | 157.00 |
| Shank Length (mm) | 31.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
