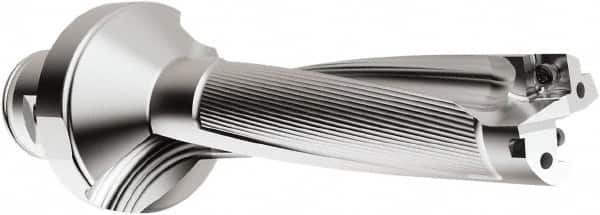

Seco - 116mm Max Drill Depth, 4xD, 29mm Diam, Indexable Insert Drill - 2 Inserts, 28mm Shank Diam, Straight Shank
Item #: 39330972
Brand: Seco
Model #: 03080198
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Depth (mm) | 116.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 28.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 30.00 |
| Overall Length/Projection (mm) | 177.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 121.00 |
| Body Length (mm) | 146.00 |
| Shank Length (mm) | 31.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
