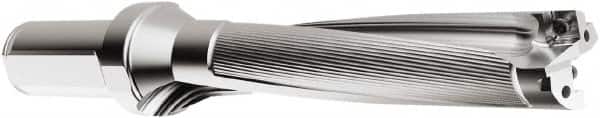

Seco - 206.25mm Max Drill Depth, 5xD, 1-5/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39331269
Brand: Seco
Model #: 03079576
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD525 |
| Drill Diameter (Inch) | 1-5/8 |
| Drill Diameter (Decimal Inch) | 1.6250 |
| Maximum Drill Depth (mm) | 206.25 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 42.28 |
| Overall Length/Projection (mm) | 302.93 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408 |
| Insert Compatibility | SPGX12T3.. |
| Flute Length (mm) | 211.25 |
| Body Length (mm) | 236.25 |
| Shank Length (mm) | 66.70 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
