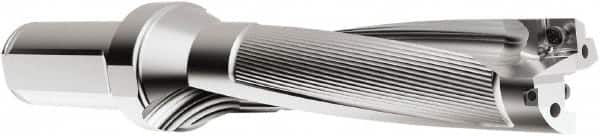

Seco - 232mm Max Drill Depth, 4xD, 58mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 39331343
Brand: Seco
Model #: 03080387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 58.00 |
| Drill Diameter (Decimal Inch) | 2.2835 |
| Maximum Drill Depth (mm) | 232.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 59.00 |
| Overall Length/Projection (mm) | 330.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 150512.. |
| Insert Compatibility | SPGX1904.. |
| Flute Length (mm) | 237.00 |
| Body Length (mm) | 262.00 |
| Shank Length (mm) | 68.00 |
| Collar Diameter (mm) | 63.00 |
| Series | PerfoMAX |
