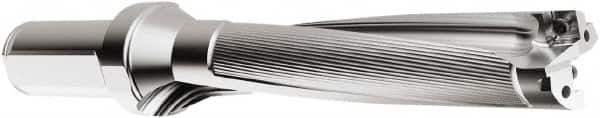

Seco - 245.87mm Max Drill Depth, 5xD, 49.2mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39331574
Brand: Seco
Model #: 03079579
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD525 |
| Drill Diameter (mm) | 49.20 |
| Drill Diameter (Decimal Inch) | 1.9370 |
| Maximum Drill Depth (mm) | 245.87 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 50.20 |
| Overall Length/Projection (mm) | 342.55 |
| Insert Compatibility (Outside or Peripheral) | SCGX 150512.. |
| Insert Compatibility | SPGX1504.. |
| Flute Length (mm) | 250.87 |
| Body Length (mm) | 275.87 |
| Shank Length (mm) | 66.68 |
| Collar Diameter (mm) | 59.35 |
| Series | PerfoMAX |
