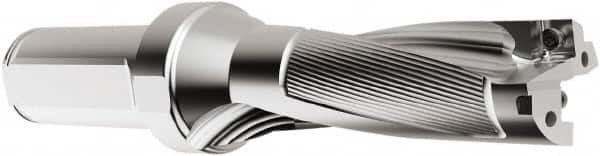

Seco - 61.98mm Max Drill Depth, 3xD, 20.62mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39332242
Brand: Seco
Model #: 03080503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 20.62 |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (mm) | 61.98 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 21.62 |
| Overall Length/Projection (mm) | 149.13 |
| Insert Compatibility (Outside or Peripheral) | SCGX 060204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 66.98 |
| Body Length (mm) | 91.98 |
| Shank Length (Decimal Inch) | 2.2500 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
