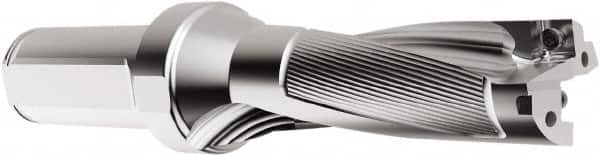

Seco - 50.04mm Max Drill Depth, 3xD, 16.66mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 39332374
Brand: Seco
Model #: 03080490
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 16.66 |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Maximum Drill Depth (mm) | 50.04 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 17.58 |
| Overall Length/Projection (mm) | 137.19 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0502.. |
| Flute Length (mm) | 55.04 |
| Body Length (mm) | 80.04 |
| Shank Length (Decimal Inch) | 2.2500 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
