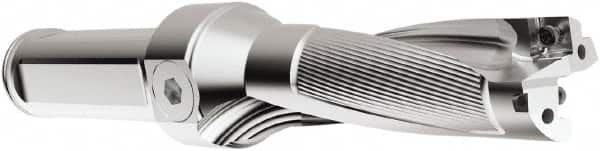

Seco - 78.74mm Max Drill Depth, 3xD, 26.21mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39332663
Brand: Seco
Model #: 03080520
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 26.21 |
| Drill Diameter (Decimal Inch) | 1.0320 |
| Maximum Drill Depth (mm) | 78.74 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 26.43 |
| Overall Length/Projection (mm) | 183.59 |
| Insert Compatibility (Outside or Peripheral) | SCGX 070308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 83.74 |
| Body Length (mm) | 113.74 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (mm) | 42.00 |
| Series | PerfoMAX |
