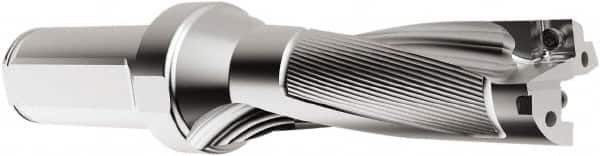

Seco - 74.93mm Max Drill Depth, 3xD, 24.99mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 39332721
Brand: Seco
Model #: 03080516
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 24.99 |
| Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Depth (mm) | 74.93 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 25.99 |
| Overall Length/Projection (mm) | 165.26 |
| Insert Compatibility (Outside or Peripheral) | SCGX 070308 |
| Insert Compatibility | SPGX0703.. |
| Flute Length (mm) | 79.93 |
| Body Length (mm) | 104.93 |
| Shank Length (Decimal Inch) | 2.3750 |
| Collar Diameter (mm) | 42.00 |
| Series | PerfoMAX |
