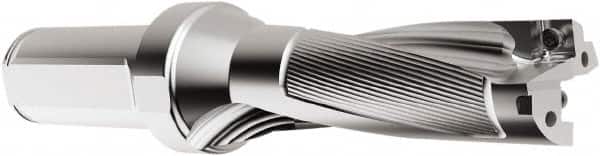

Seco - 119.13mm Max Drill Depth, 3xD, 39.67mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39332820
Brand: Seco
Model #: 03080550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 39.67 |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Depth (mm) | 119.13 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 40.67 |
| Overall Length/Projection (mm) | 215.81 |
| Insert Compatibility (Outside or Peripheral) | SCGX 11T308 |
| Insert Compatibility | SPGX12T3.. |
| Flute Length (mm) | 124.13 |
| Body Length (mm) | 149.13 |
| Shank Length (mm) | 66.70 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
